Features Can't work alone,need work with access control panel Built-in Antenna Built-in LED (Double Color LED) Built-in Loud Speaker (Buzzer) Card Type: Stand M1 IC 13.56Mhz card (Can't support HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell,etc) Wiegand 26 bit output for connect to a controller Supports 13.56Mhz IC card Less than 0.2 second Response Speed Less than 0.5 seconds Proximity Time Distance Less than 0.5 seconds Proximity Time Distance Real Time Data Transfer Specification Frequency 13.56MHz Card Type Stand EM-ID card (Can't support HID, Indala,Cobra, APCiK, Paradox, Radio, Honeywell,etc) Response Speed Less than 0.2 second Proximity Time Distance Less than 0.5 seconds Reading range 2~15cm / 0.79-5.91in Dimension 100mmx46mmx21mm / 3.94"x1.81"x0.83" Input Voltage DC12V Current Max. 70mA Note

Please notice that our wiegand reader can't be compatible with some encrypted cards, such as HID,Cobra,APCiK,Paradox,etc.

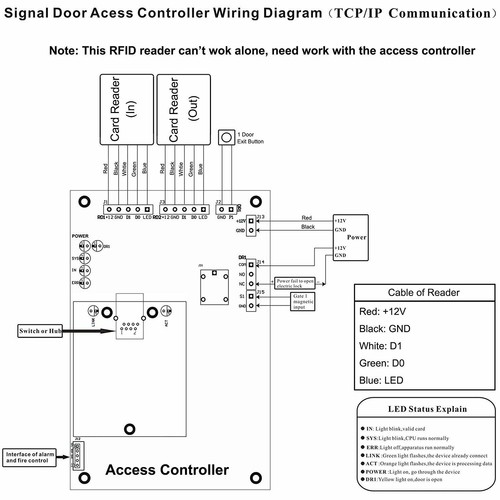

Wiring Diagram Package

1 x RFID Card Reader (As it is a card reader, the manual is not included)

Returns Accepted for this item if it's within 30 Days
